Crack propagation at the wall of a salt cavern due to a temperature decrease

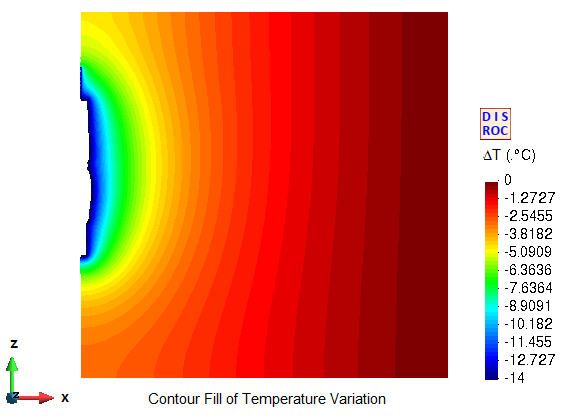

Figure 1 : Temperature drop of 14 degrees at the cavern wall

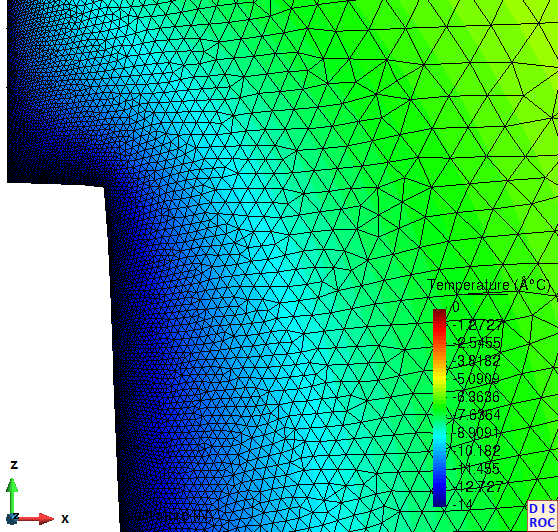

Figure 2: Mesh detail near the roof of the cavern

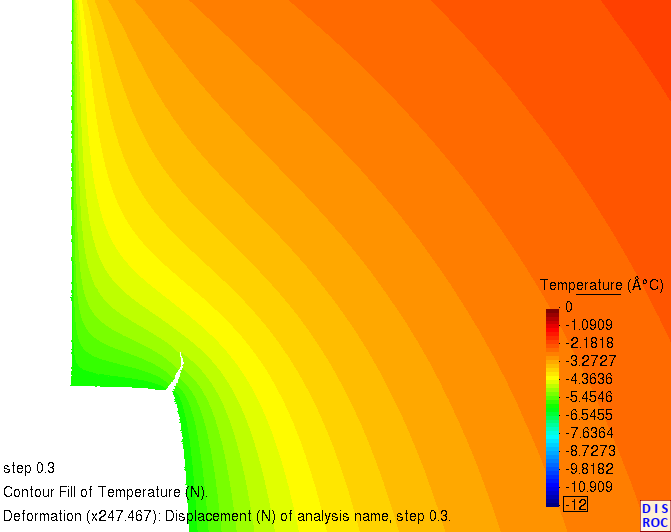

Figure 3: Crack initiation for a temperature drop of 8°C

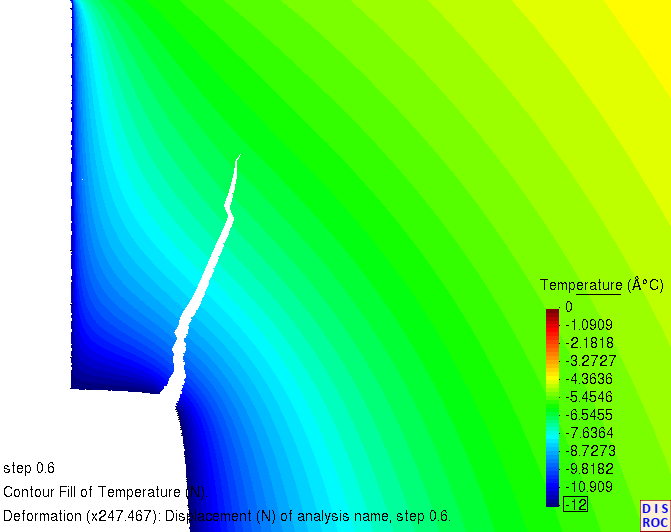

Figure 3: Crack propagation for a temperature drop of 12°C

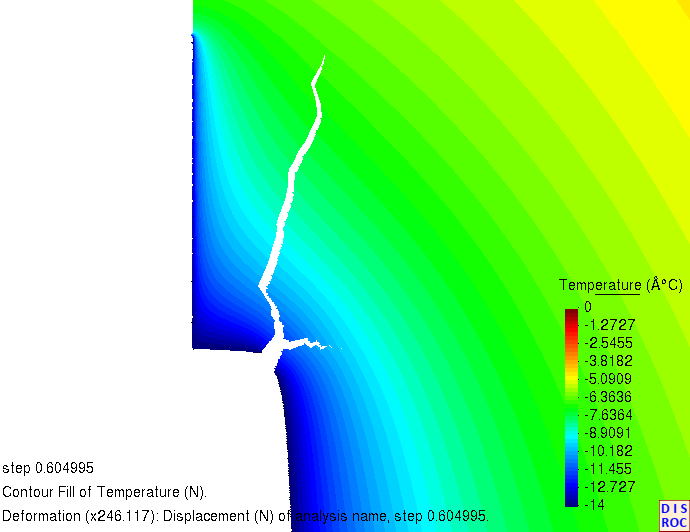

Figure 4: Crack propagation for a temperature drop of 14°C
